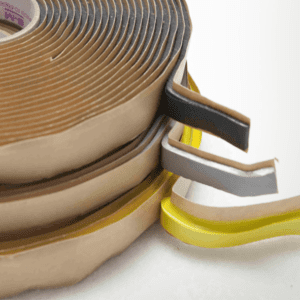

Aerovac Sealant Tapes
Specially formulated bagging tapes for a range of temperatures
Aerovac offers a comprehensive range of sealant tapes that passed the test in many different and challenging manufacturing environments. Aerovac sealant tapes have been specially formulated to suit a range of cure temperatures, from ambient cures to high temperature thermoplastic cures of 400°F to meet your requirements. Various weights are available.
Aerovac Sealant Tapes are available through Composites One in North America or through Aerovac’s Distribution Network globally.
Sealant tapes are used in the composite manufacturing process during vacuum bagging applications. These help create an airtight seal on the bag to ensure the best possible results from the curing procedure. Some of the most common types include tacky tape, butyl tape, and chromate tape. Aerovac has a wide range of options for various uses. To learn more, see the chart below. If you want to place your order or get tech support, reach out to our composite specialists today.
Sealant Tape Product List
For more detailed information about each product, fill out the form below the product table to download the technical data sheet PDFs.
Product
Temp. °F (°C)
Description
LTS90B/G
414° (150°)
Black/gray tape ideal for de-bulk and medium temperature applications, such as wind energy, marine and glass laminating, up to 414°F (150°C).
UCS180
356° (180°)
Cream sealant strip with high tack and elongation, which also strips easily from the part, ideal for composite/metal bonding applications in an oven or autoclave up to 356°F (180°C).
SM5127W
250° (121°)
Dark gray tape with good tack and snap back, ideal for oven curing temperatures of up to 250°F (121°C).
SM5142W
250° (121°)
Yellow tape with good tack and snap back, ideal for oven curing temperatures of up to 250°F (121°C).
SM5127
400° (204°)
Dark gray tape which strips cleanly and quickly after cures up to 400°F (204°C), and is approved on a number of major aerospace specifications.
SM5130
400° (204°)
Grey vacuum bagging tape, predominantly used for debulk operations in aerospace applications up to 400°F (204°C). Low tack for ease of bag repositioning, and strips cleanly and quickly after curing.
SM5142
400° (204°)
Yellow tape with good tack and snap back, ideal for ambient, oven and autoclave curing temperatures of up to 400°F (204°C).
SM5143
424° (218°)
Yellow vacuum tape with good tack and snap back, ideal for oven and autoclave curing temperatures of up to 424°F (218°C).
SM5144
424° (218°)
Yellow vacuum sealant tape which achieves excellent positive vacuum seal and strips cleanly and quickly after cures up to 424°F (218°C), approved on a number of major aerospace specifications.
SM5126
450° (232°)
Dark gray versatile tacky tape ideal for oven and autoclave applications up to 450°F (232°C) which is approved on various aerospace specifications.
SM5160
752° (400°)
Dark brown tape ideal for ultra-high temperature applications up to 752°F (400°C), where traditional tapes will not survive.
SM5153
400° (204°)
Yellow vacuum bag sealant tape with good tack and snap back, ideal for oven and autoclave curing temperatures of up to 424°F (218°C).
RS 200
400° (204°)
Grey tape developed for use in composite and metal bond fabrication and is excellent for bag sealing epoxies, polyesters, phenolics and other adhesives and prepregs at temperatures up to 400°F (204°C).
VAC-SEAL 1090
338° (170°)
Ideally suited to wind energy and resin infusion applications. Ideal for ambient, oven and autoclave curing temperatures of up to 170°C (338°F).
VAC-SEAL 2042
400° (204°)
Ideally suited to industrial and automotive applications. Ideal for ambient, oven and autoclave curing temperatures of up to 204°C (400°F).
VAC-SEAL 2026
450° (232°)
A versatile high temperature sealant tape for use in oven and autoclave. Ideally suited to industrial and automotive applications that may see high temperatures close to 232°C (450°F)
VAC-SEAL 2027
400° (204°)
Ideal for use on composite or Invar tooling. Tenacious adhesion to all commonly used vacuum bagging films. Strips very cleanly and quickly after curing, on cooling below 66°C (151°F)
